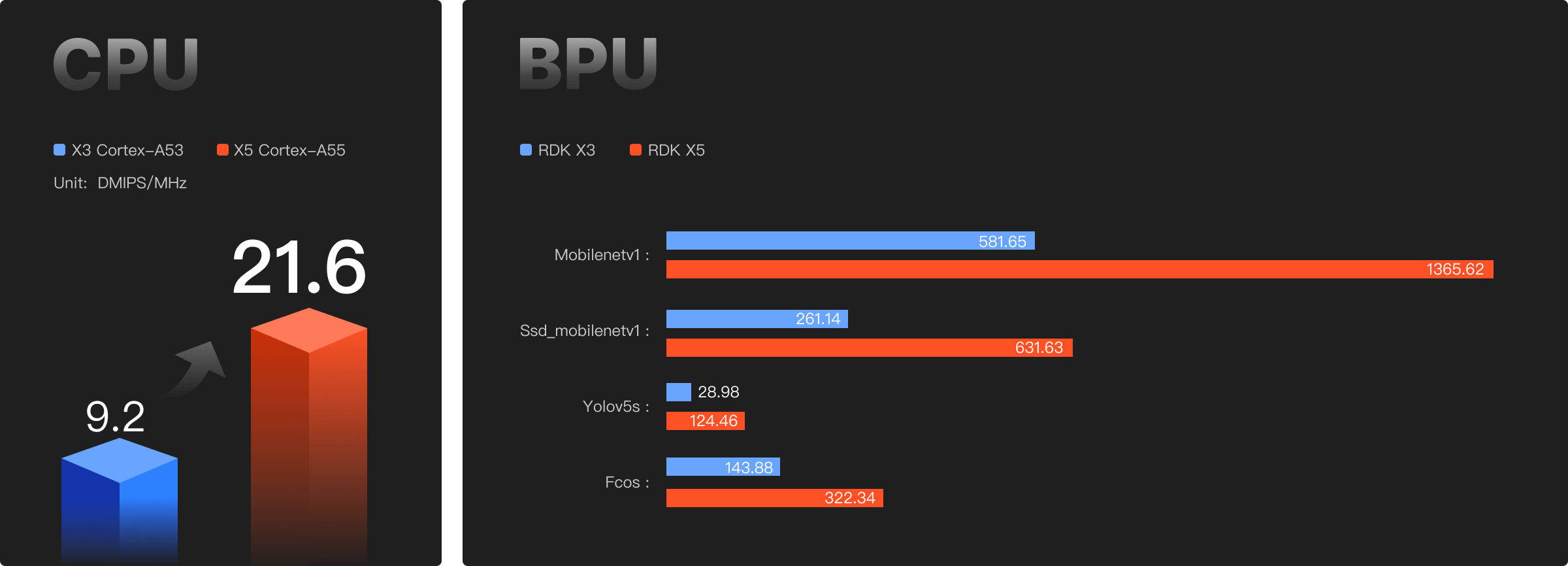

Super Powerful Computing Power Boost
From CPU to BPU, a comprehensive performance leap significantly enhances the execution speed of intelligent algorithms, providing exceptional computational support for robots.
Rich interfaces, convenient and easy to use

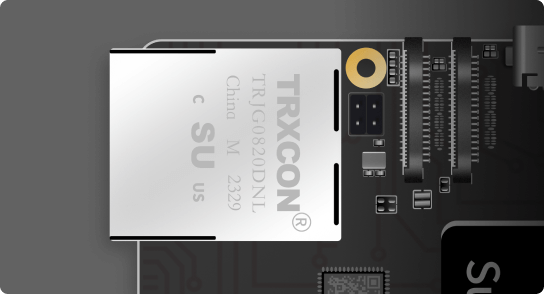

POE Power Supply
Easier solution integration

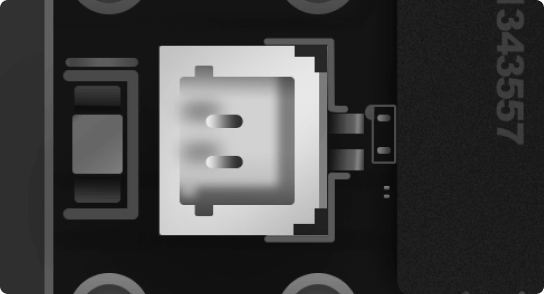

Real-time clock
Precise time synchronization
Multi-standard compatible headset
Audio-visual integration for multi-modal applications

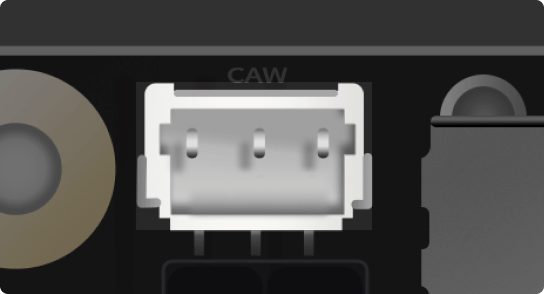

CAN FD high-speed interface
Helping robots quickly deploy

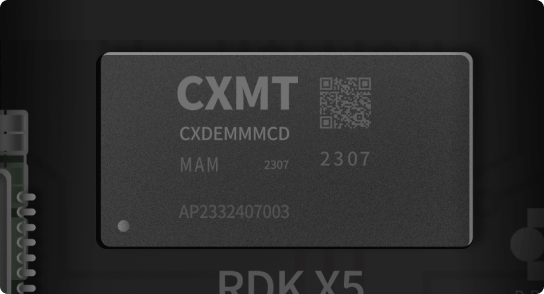

4/8G RAM
Multiple memory models to choose from

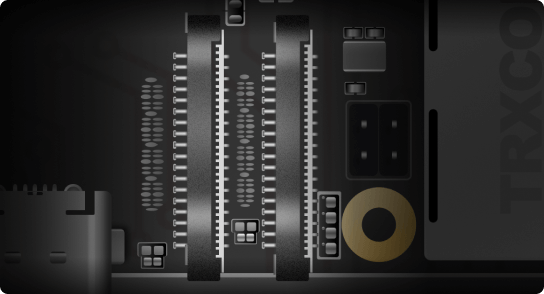

Dual MIPI inputs
Seamless compatibility with stereo algorithms

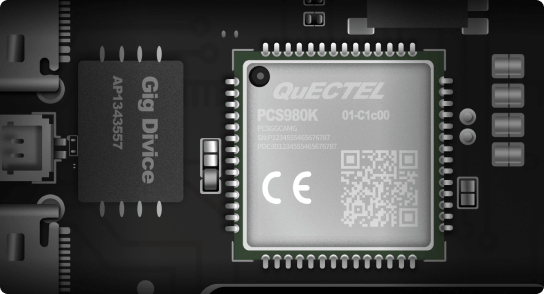

Wi-Fi 6, Bluetooth 5.4
Ultra-fast connection with onboard antenna module, connecting faster than ever
Debug serial port
Convenient to use, no waiting required
Advantageous Algorithm Matrix: Providing Innovative Solutions for the Robot Era
From intelligent perception to autonomous decision-making, cutting-edge algorithms inject core power into the robotics industry, helping achieve precise and efficient technological breakthroughs.
Keypoint detection and matching based on deep learning
Keypoint detection and matching based on deep learning
Enhances motion estimation accuracy and robustness in challenging conditions like backlighting, low light, and weak textures.
Deep Learning Optical Flow Estimation
Deep Learning Optical Flow Estimation
Delivers precise pixel-level correspondences, outperforming traditional dense optical flow algorithms in performance, robustness, and efficiency.
Stereo Depth Estimation Algorithm
Stereo Depth Estimation Algorithm
Enables high-precision distance measurement with an error of under 1% within 10 meters.
Occupancy
Occupancy
Offers precise 3D geometry and semantic information for obstacle avoidance and local path planning, ensuring greater consistency.

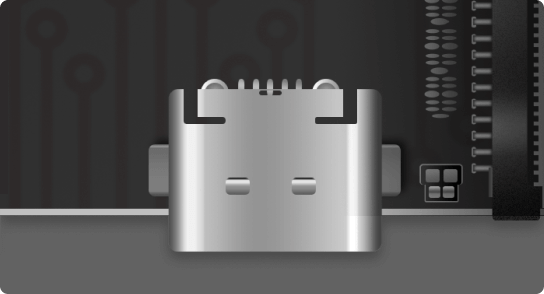

Innovative"Flash Connect"
Development Paradigm
Development Paradigm
A single Type-C cable covers the entire process from system programming to advanced development, boosting efficiency and unlocking the full potential of the RDKX5.
200+ Open-source Algorithms and Application Acceleration Solutions Deployment
NodeHub covers everything needed for robot development, from sensors and algorithms to application examples, while the RDKX5 algorithm solutions bring you more cutting-edge technologies.
Deep learning line-following car
D-Robotics
👍 0
👁 260
Visual-inertial odometry
D-Robotics
👍 0
👁 159
Human and skeleton keypoint detection
D-Robotics
👍 1
👁 178
Robotic arm object picking
D-Robotics
👍 0
👁 166
Cartographer lidar SLAM
D-Robotics
👍 0
👁 125
Track detection
D-Robotics
👍 0
👁 65

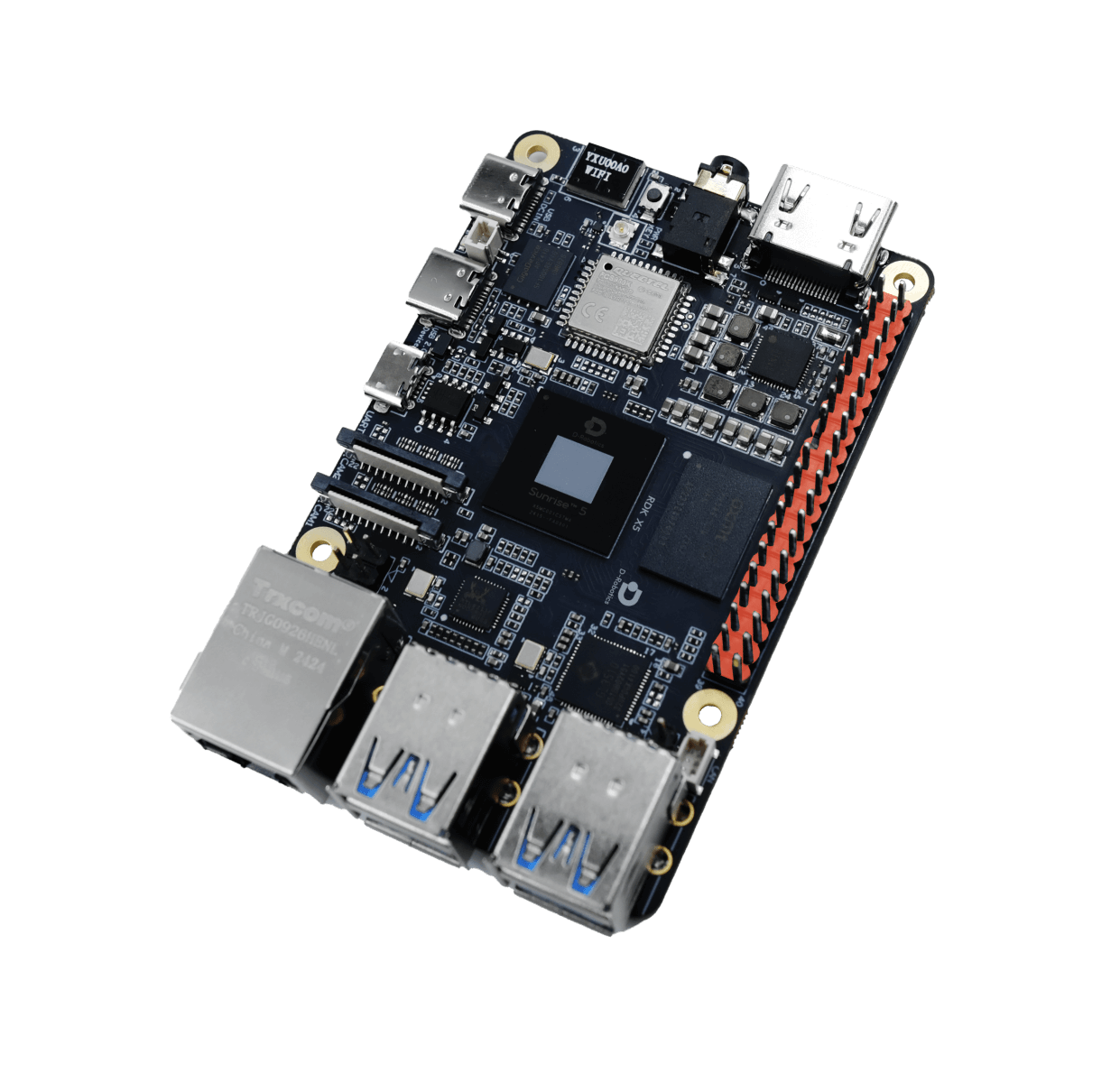

Specifications
· CPU8x A55@1.5GHz
· RAM4GB/8GB LPDDR4
· BPU10 TOPS
· GPU32Gflops
· StorageNA, supports external Micro SD card Peripheral
· MultimediaH.265 (HEVC) Main Profile @ L5.1, H.264 (AVC) Baseline/Constrained Baseline/Main/High Profiles @ L5.2 with SVC-T encoding, H.265/H.264 encoding and decoding up to 3840x2160@60fps
· Sensor2 x 4-lane MIPI CSI
· USB Host4 x USB 3.0 Host interfaces（Type-A）
· USB Device1 x USB 2.0 Device interface（Type-C）
· Debug Uart1 x Debug serial port（Micro USB）
· Headphones1 x 3.5mm headphone jack audio input/output
· Display 11 x HDMI Type-A port supporting up to 1080p60
· Display 21 x MIPI DSI 4 Lane
· Wireless networkWi-Fi 6 & Bluetooth 5.4
· Wired network1 x Gigabit Ethernet RJ45 port with PoE
· CAN1x CAN FD
· Other I/O28 GPIOs (Reusable support 5 x UART, 8 x PWM, 3 x I2C, 2 x SPI, 1 x I2S)
· Power input5V/5A
· System supportUbuntu 22.04
