D-Robotics RDK™ X3
The RDK X3 series encompasses the RDK X3 and RDK X3 Module, delivering exceptional 5Tops edge inference capabilities. Their standardized dimensions and interfaces seamlessly integrate with generic products, empowering developers to rapidly deploy intelligent products and robotic solutions.
Efficient Algorithm Inference Capability
- 5TOPs Computing Power
- Heterogeneous Multi-core
Powerful Image Processing Capability
- 4K@30fps Encoding/Decoding
- Multi-interface Support

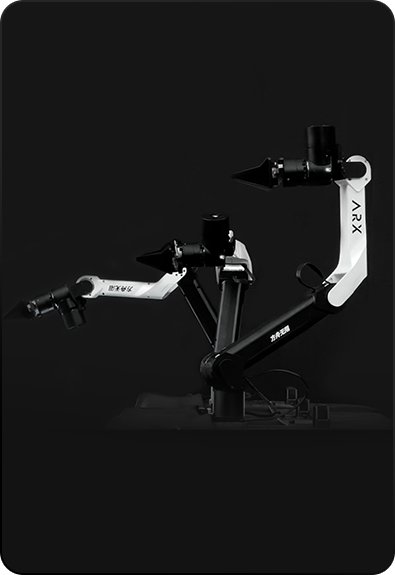

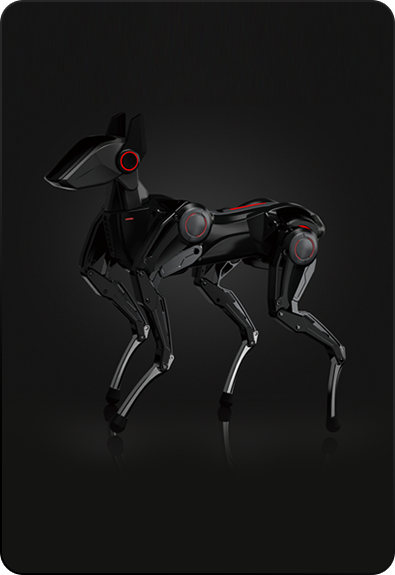

100+ Robot Development Kits Accelerate Product Assembly
Providing development toolkits including various sensors and controller modules, covering autonomous vehicles, wheeled robots, robotic arms and other forms of robotic products, comprehensively accelerating robot solution implementation.
100+ Open Source Algorithms and Applications Accelerate Solution Deployment
NodeHub covers everything needed for robot development from sensors, algorithms, application examples and more. Start your journey into the world of robotics exploration here.
Specifications

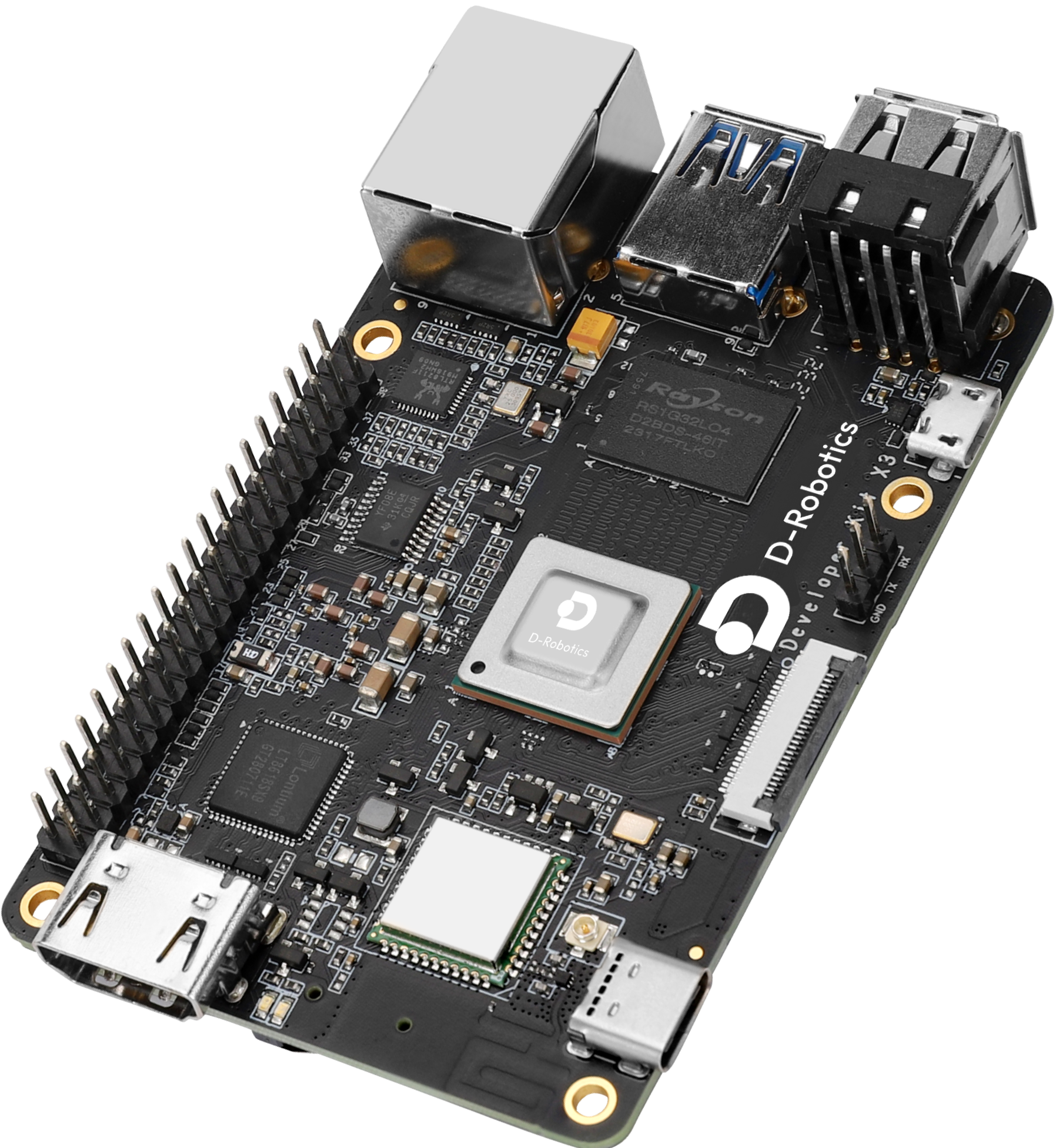

RDK X3
RDK X3 Module
RDK X3 carrier board
· CPUQuad-core ARM Cortex A53@1.5G
· RAM2GB/4GB LPDDR4 RAM
· BPUDual-core Bernoulli Arch, 5TOPs
· Storage16GB/32GB/64GB eMMC or Micro SD
· MultimediaH.265 (HEVC) Encoding and DecodingMain profile, L5.1 4K@60fps, JPEG Encoding and Decoding 16Mpixels
· SensorMIPI CSI 2lane x 2
· USB HostUSB Type-A 3.0 x 1 USB Type-A 2.0 x 2
· USB DeviceMirco USB 2.0 x 1
· Debug UART1 x Debug UART
· Display1 x HDMI1.4 (up to 1080p60)
· Wireless NetworkWi-Fi 2.4/5GHz Bluetooth 4.2
· Wired NetworkRJ45 interface
· 40PINGPIO&I2C&UART&SPI&I2S&PWM
· Power Input5V 3A
· System SupportUbuntu 20.04/22.04
